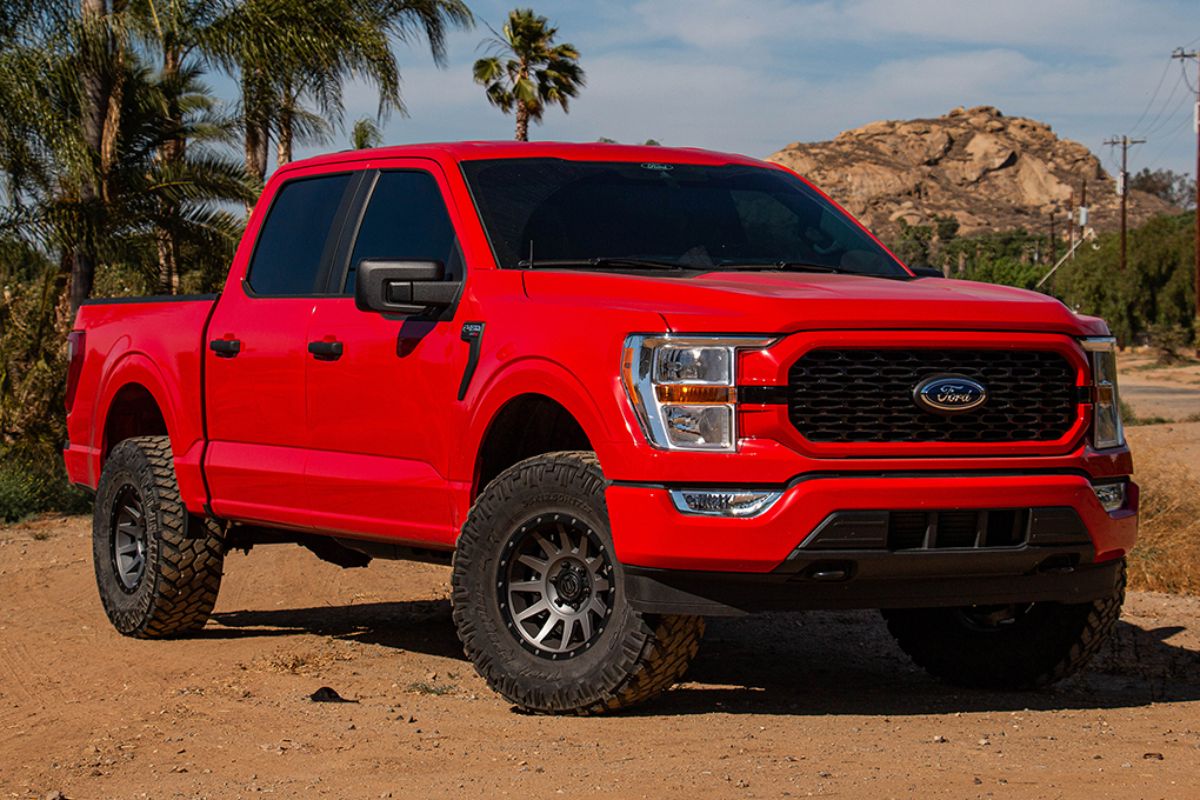

2021-2022 Ford F-150 2WD 0-3" Front Lift Stage 3 Lift Kit w/ Billet UCAs by Icon Vehicle Dynamics

Part #:
ICN-K93123
Price:
$4,319.85
Availability:
Usually ships the same business day
CA Prop 65 Warning Warning: Cancer and Reproductive Harm For more information, go to www.P65Warnings.ca.gov
Quantity:
Free Shipping!
  • Description
  • Features
  • Tech Info/Kit Components
ICON Vehicle Dynamics Ford F-150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. Billet aluminum upper control arms on the F150 not only add strength and durability, but help retain factory alignment spec range by increasing caster over stock and offering additional caster/camber adjustability.

ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics F-150 Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

The part number for this item is Icon K93123T and it fits 2021-2022 Ford F-150 2WD Models.
Increased wheel travel and ride quality over stock with no change in towing capacity
2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
100% Bolt-on system - no drilling, cutting, or welding necessary for install
Unique valving developed for the lighter weight of the 2021-UP F-150
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Adjustable coilovers from 0-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
Kit Components:
91717 (QTY: 1) | 21-UP F150 2WD 0-2.3" 2.5 VS IR COILOVER KIT
98507DJ (QTY: 1) | 21-UP F150 BILLET UCA DJ KIT
97720P (QTY: 1) | 09-UP F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB PAIR

Tech Info:
EM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
APPLICATION NOTE #129: WILL NOT WORK WITH ELECTRONICALLY CONTROLLED SUSPENSION
TECH NOTE: F-150 Tremor trim lift height range 0-1.25" over stock
Ships in multiple boxes
