2021-2023 Ford F-150 4WD 2.5 Series Front Coilovers (0-2.75" Lift) w/ Remote Reservoir + CDCV by Icon Vehicle Dynamics
Description
CDC Video Demo
Tech Info
ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock. These coil-over’s are meant to be installed with an aftermarket uniball upper control arm kit to ensure the proper amount of wheel travel and to prevent premature ball joint wear.

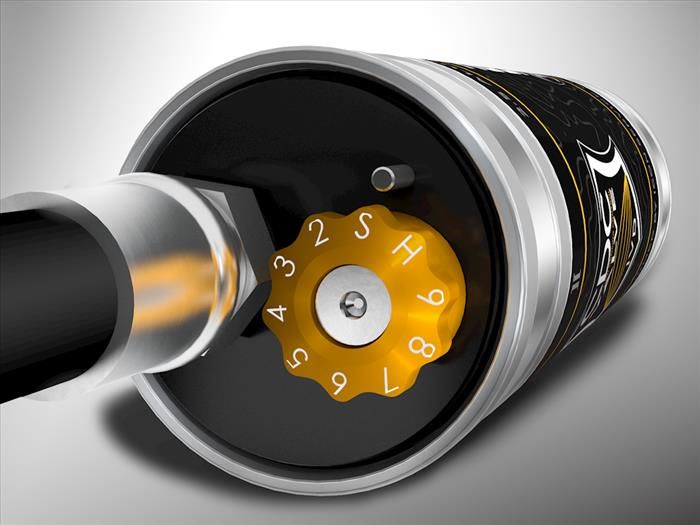

Take control of your ride: These Icon shocks feature Icon's CDCV technology. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Control the stiffness of your ride with the simple turn of a dial, giving you the best of all worlds and the ability to optimize your ride when on the road or off-road
The part number for this item is Icon 91823C and it fits 2021-2022 Ford F-150 4WD Models.
Adjustable ride height from 0" - 2.75"
Mounting Bracket Orients Reservoir for Optimum Tire Clearance
External Reservoir Ensures Maximum Cooling
Chrome-silicon spring
250 PSI nitrogen-charged internal reservoir
Race shock piston with flutter stack compression valving
Kit Includes Sway bar relocation brackets
Kit also Includes Reservoir Mounting Brackets
Cad-plated threaded body
Billet aluminum upper mount
5/8" PTFE-lined spherical bearing
Completely re-buildable
Hose Length Optimized for Increased Fluid Transfer The CDCV system controls the rate in which fluid flows from the shock and reservoir all at the turn of a dial while the reservoirs are installed on your truck.Tech Info:
Factory Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
TECH NOTE: F-150 Tremor trim lift height range 0-1.25" over stock
TECH NOTE: Not compatible with models equipped with Continuous Control Damping (CCD) system
